    OSPF Lab4 – Configuring OSPF Stub Area

    By admin | March 31, 2009

    Lab Objectives

    1. Learn LSA funtion of type1, type2, type3, type 4 and type5.

    2. Learn OSPF Stub area features

    3. Learn OSPF Stub area configuration methods

    4. Learn OSPF Stub area configuration requirements: Stub area has at least one ABR, but no ASBR

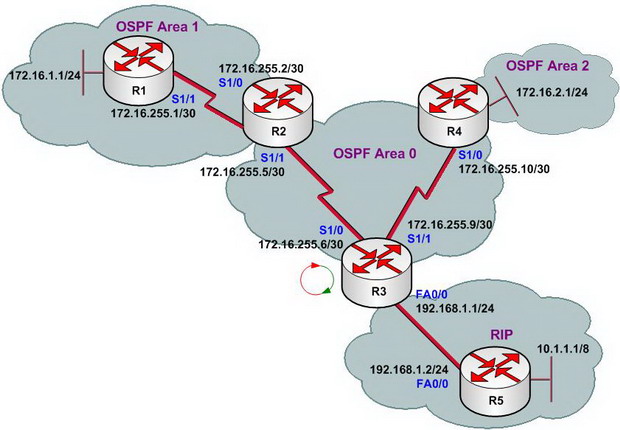

    Lab Topology

    9

    Lab Steps

    1. Configure IP addresses of every router, and use ping command to confirm the direct interface connectivity of every router.

    2. Configure OSPF and RIP protocol, and use ping and show ip route command to confirm that protocol can work normally

    3. Configure redistribution on R3 to complete lab requirements. Configure as follows:

    R3(config)#router ospf 1

    R3(config-router)#redistribute rip subnets metric 200

    R3(config-router)#exit

    R3(config)#

    R3(config)#router rip

    R3(config-router)#redistribute ospf 1 metric 10

    R3(config-router)#exit

    R3(config)#exit

    4. Check routing table of R1.

    R1#show ip route

    Gateway of last resort is not set

    172.16.0.0/16 is variably subnetted, 5 subnets, 2 masks

    C 172.16.255.0/30 is directly connected, Serial1/1

    O IA 172.16.255.4/30 [110/128] via 172.16.255.2, 00:07:32, Serial1/1

    O IA 172.16.255.8/30 [110/192] via 172.16.255.2, 00:06:57, Serial1/1

    C 172.16.1.0/24 is directly connected, Loopback0

    O IA 172.16.2.0/24 [110/193] via 172.16.255.2, 00:06:05, Serial1/1

    O E2 10.0.0.0/8 [110/200] via 172.16.255.2, 00:02:01, Serial1/1

    O E2 192.168.1.0/24 [110/200] via 172.16.255.2, 00:02:01, Serial1/1

    R1#

    R1#ping 10.1.1.1

    Type escape sequence to abort.

    Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:

    !!!!!

    Success rate is 100 percent (5/5), round-trip min/avg/max = 672/788/984 ms

    R1#

    5. Check link status database of R1

    R1#show ip ospf database

    OSPF Router with ID (172.16.1.1) (Process ID 1)

    Router Link States (Area 1)

    Link ID ADV Router Age Seq# Checksum Link count

    172.16.1.1 172.16.1.1 682 0x80000003 0x003BE1 3

    172.16.255.5 172.16.255.5 677 0x80000003 0x0035B1 2

    Summary Net Link States (Area 1)

    Link ID ADV Router Age Seq# Checksum

    172.16.2.0 172.16.255.5 581 0x80000001 0x004CEE

    172.16.255.4 172.16.255.5 668 0x80000001 0x009BE1

    172.16.255.8 172.16.255.5 633 0x80000001 0x00F543

    Summary ASB Link States (Area 1)

    Link ID ADV Router Age Seq# Checksum

    192.168.1.1 172.16.255.5 342 0x80000001 0x008648

    Type-5 AS External Link States

    Link ID ADV Router Age Seq# Checksum Tag

    10.0.0.0 192.168.1.1 348 0x80000001 0x005B1B 0

    192.168.1.0 192.168.1.1 348 0x80000001 0x0021F4 0

    R1#

    6. We notice that R1 has learnt all the routes in this lab, but R1 need not to learn all the network routes. Too much route entries will enlarge the size of router, not using route query or network convergence. OSPF network routes are broadcasted through LSA. We may limit LSA blooding area and use proper summary routes, thus reduce the size of routing table, make it easy for network convergence, and strengthen network stability.

    7. Configure area 1 as stub area on R1 and R2.

    R1(config)#router ospf 1

    R1(config-router)#area 1 stub

    R1(config-router)#exit

    R1(config)#exit

    R2(config)#router ospf 1

    R2(config-router)#area 1 stub

    R2(config-router)#exit

    R2(config)#

    8. check again link status database of R1.

    R1#show ip ospf database

    OSPF Router with ID (172.16.1.1) (Process ID 1)

    Router Link States (Area 1)

    Link ID ADV Router Age Seq# Checksum Link count

    172.16.1.1 172.16.1.1 155 0x80000005 0x0055C7 3

    172.16.255.5 172.16.255.5 155 0x80000005 0x004F97 2

    Summary Net Link States (Area 1)

    Link ID ADV Router Age Seq# Checksum

    0.0.0.0 172.16.255.5 168 0x80000001 0x00017B

    172.16.2.0 172.16.255.5 168 0x80000002 0x0068D3

    172.16.255.4 172.16.255.5 168 0x80000002 0x00B7C6

    172.16.255.8 172.16.255.5 168 0x80000002 0x001228

    R1#

    By checking R1 database we find that LSA of type4 and type5 is refused, thus limit LSA flooding area.

    9. Check routing table of R1, and confirm the changes of routing table. With the default route sent by R2, R1 need not to receive LSA of type3, i.e. need not to know ASBR location.

    R1#show ip route

    Gateway of last resort is 172.16.255.2 to network 0.0.0.0

    172.16.0.0/16 is variably subnetted, 5 subnets, 2 masks

    C 172.16.255.0/30 is directly connected, Serial1/1

    O IA 172.16.255.4/30 [110/128] via 172.16.255.2, 00:04:19, Serial1/1

    O IA 172.16.255.8/30 [110/192] via 172.16.255.2, 00:04:19, Serial1/1

    C 172.16.1.0/24 is directly connected, Loopback0

    O IA 172.16.2.0/24 [110/193] via 172.16.255.2, 00:04:19, Serial1/1

    O*IA 0.0.0.0/0 [110/65] via 172.16.255.2, 00:04:19, Serial1/1

    R1#

    10. Use ping command to confirm route efficiency

    R1#ping 10.1.1.1

    Type escape sequence to abort.

    Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:

    !!!!!

    Success rate is 100 percent (5/5), round-trip min/avg/max = 240/393/684 ms

    R1#

    11. From the above configuration, we have to learn that: stub area refused LSA of type4 and type5.

    12. Lab finished.

    Hope to helpful for you!
